VLM

Reads a picture with a vision model — including document pages, as clean markdown.

The VLM node reads an image with a vision-language model served over an OpenAI-compatible endpoint. It ships an olmOCR preset that transcribes a document page — scans, receipts, screenshots, forms — into clean markdown, with tables converted to HTML and equations to LaTeX.

Unlike the OCR node, which recognises glyphs with Tesseract, this node hands the whole page to a model that also understands its layout. It is the better choice for multi-column pages, tables, forms and handwriting, at the cost of needing a GPU-backed model service. Both nodes can run in the same pipeline.

Kind

vlm

Applies to


Input ports

media

Output ports

result_{promptId} — one port per configured prompt. Configured with no prompts the node falls back to the olmOCR preset and exposes a single result port

Requirements

An OpenAI-compatible vision endpoint (for example vLLM serving olmOCR). GPU-bound; no native library on the worker.

Persists to

asset_json_comp + asset_node_result ledger

Configuration

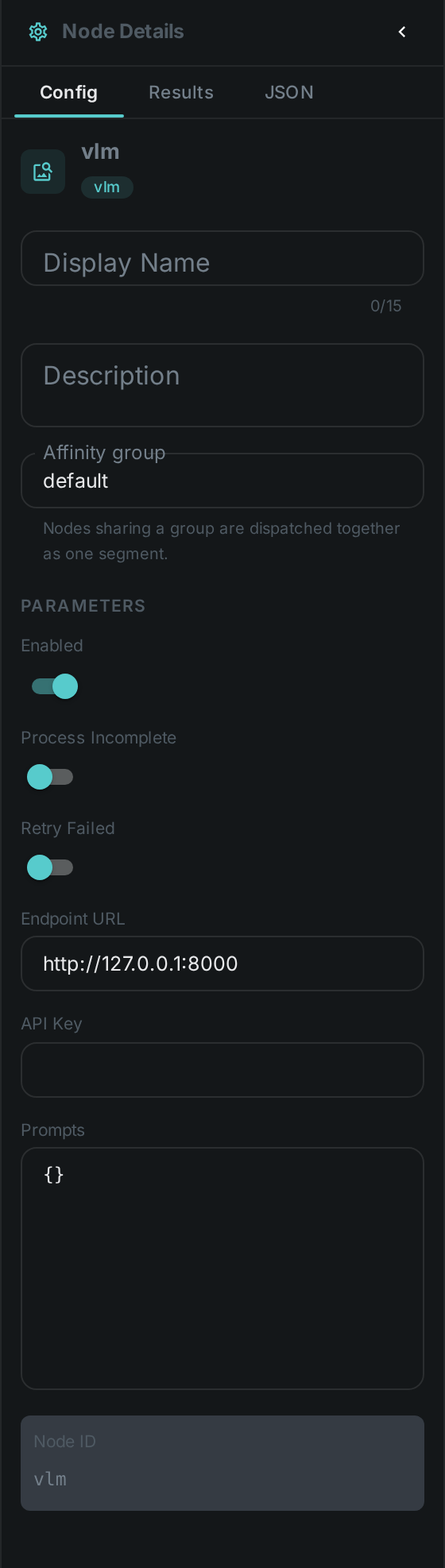

The VLM (Vision-Language Model) settings panel: Endpoint URL
Figure 1. The node’s settings in the pipeline editor

Set these in the panel above, or in the node’s options block in a pipeline definition:

Option Meaning

endpointUrl

Base URL of the vision endpoint, e.g. http://127.0.0.1:8000

apiKey

Bearer token for the endpoint; usually unset for a local service

prompts

Named tasks to run against the image, keyed by prompt id. Each one adds a result_{promptId} output port, which appears on the node in the editor as soon as the prompt is defined

Each entry under prompts configures one task:

Option Meaning

model

Model id to select on the endpoint

prompt

Instruction sent alongside the image

responseFormat

TEXT, JSON or OLMOCR — how the answer is read back

maxImageDim

Longest image side in pixels sent to the model; 0 disables scaling

maxTokens

Output token budget; a full document page needs a few thousand

temperature

Sampling temperature

retryOnRotation

For OLMOCR: when the model reports the page is sideways, rotate it and ask again

Configured with no prompts the node falls back to the olmOCR preset, so pointing endpointUrl at a running olmOCR server is enough to get document transcription.

Seeing it run

Turn on Debug Mode and every node keeps what it produced, on the card itself. Below is a real run over a scanned page, with one prompt configured — transcription — asking the model to transcribe what it can see.

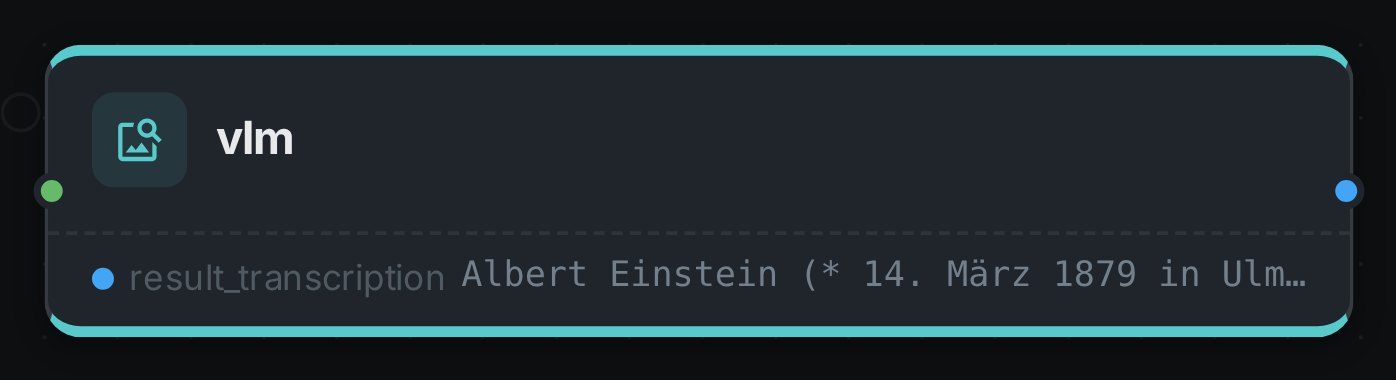

The VLM node after a run

The port is named after the prompt: configure two prompts and you get two ports. This run went to a locally served Qwen2.5-VL; the page it read is German, and nothing in the prompt said so.

Running olmOCR

The preset targets allenai/olmOCR-2-7B-1025-FP8. Serve it with vLLM:

vllm serve allenai/olmOCR-2-7B-1025-FP8 \
    --host 0.0.0.0 --port 8000 \
    --max-num-seqs 1 \
    --max-model-len 16384 \
    --limit-mm-per-prompt.image 1 \
    --gpu-memory-utilization 0.85 \
    --kv-cache-dtype fp8 \
    --override-generation-config '{"max_new_tokens":4096}'

Give the context window room: at the preset’s 1288-pixel page size the image alone takes well over a thousand tokens before the model writes a single word, and a dense page can run to several thousand more. A context or token limit set too low silently truncates the transcription part-way through the page.

Results

For the olmOCR preset the stored component carries the transcribed page plus what the model observed about it:

Field Meaning

natural_text

The transcribed page as markdown

primary_language

Language the model detected

is_rotation_valid / rotation_correction

Whether the page was upright, and the turn needed if not

is_table / is_diagram

Whether the page is mostly a table or a diagram

truncated

Set when the model ran out of output tokens mid-page

Use Cases

  • Searchable document archives — transcribe scanned reports, contracts and correspondence.

  • Structured pages — recover tables and forms that plain OCR flattens into unusable text.

  • Mixed-language material — the model reports the language it detected per page.

  • Beyond OCR — point a prompt at any vision model to caption images or pull specific fields out of them.
