Script

The script node runs a small piece of code you write as a step in your pipeline. It reads the media item and the outputs of any nodes upstream of it, and produces whatever outputs you declare — a text, a number, a list of texts, a block of JSON, a set of timeframes, or images.

It exists for the gap between "one of the built-in nodes already does this" and "we need a new node built and released". Turning a transcript into chapter marks, thresholding a quality metric into a tag, reshaping a language model’s answer into structured fields — each is a few lines of code, and each would otherwise be a development project.

Kind

script

Applies to

Any asset

Inputs

The media item, plus the outputs of any upstream nodes you connect

Output keys

Whatever you declare — see Declaring outputs

Languages

JavaScript

Requirements

None. The script runs inside the Cortex worker; no external service is involved

Persists to

asset_json_comp (one row per script node), and asset_segment_comp for timeframe outputs

Writing a script

The script runs once per media item. Six values are available to it:

Name What it gives you

media

The current item: path, absolutePath, size, sha512, isVideo, isImage, isAudio, isDocument

upstream

Outputs of upstream nodes: upstream['whisper']['whisper_result']

params

The constants you set in the node’s Parameters field, so one script can be reused with different settings

out

How you produce results — out.text, out.number, out.integer, out.bool, out.json, out.list, out.timeframes, out.image, out.path

log

log.info, log.warn, log.error — written to the worker log, prefixed with the node’s name

ctx

ctx.skip('reason') to record the item as skipped, ctx.fail('reason') to record it as failed

A complete example — turning a transcript into chapter marks:

const re = new RegExp(params.pattern, 'i');
const transcript = JSON.parse(upstream['whisper']['whisper_result']);

const frames = transcript.segments
  .filter(s => re.test(s.text))
  .map(s => ({ startMs: Math.round(s.start * 1000),
               endMs:   Math.round(s.end   * 1000),
               label:   s.text.trim() }));

if (frames.length === 0) {
  ctx.skip('no chapter markers in transcript');
}

out.timeframes('chapter_frames', frames);
out.list('chapter_titles', frames.map(f => f.label));
out.integer('chapter_count', frames.length);

Declaring outputs

Outputs are declared in the node’s Outputs field, not discovered from the script. This is what lets the pipeline editor draw the node’s output connectors so you can wire the next node to them before the script has ever run.

[
  { "key": "chapter_frames", "type": "TIMEFRAMES" },
  { "key": "chapter_titles", "type": "TEXT_LIST" },
  { "key": "chapter_count",  "type": "INTEGER" }
]
Type The script provides Stored as

STRING, TEXT

a string

a field in the node’s JSON result

INTEGER, NUMBER

a number

a field in the node’s JSON result

BOOLEAN

true / false

a field in the node’s JSON result

JSON

an object

a field in the node’s JSON result

TEXT_LIST

an array of strings

a field in the node’s JSON result

TIMEFRAMES

an array of { startMs, endMs, label }

a real timeline on the asset

IMAGE, IMAGE_LIST

image bytes, base64, or a path

an image file in the worker’s cache

PATH

a file path

a field in the node’s JSON result

A single item can produce several multi-valued outputs at once — that is how one transcript becomes a whole timeline of chapter marks plus a list of titles plus a count, in one pass.

Writing to a key you have not declared stops the node with an error naming the key. That is deliberate: a typo that was silently dropped would leave your pipeline claiming a connection carries data that never arrives.

Timeframes are stored as a real timeline against the asset, so they can be queried and displayed rather than sitting in an opaque blob. Each timeframe output is filed under a segment type — CHAPTER (the default), SCENE, SILENCE or SHOT. Set it with "segmentType": "SCENE" alongside the key and type. If one node declares two timeframe outputs, give them different segment types.

Images are written to the worker that ran the script, and the output carries their file paths. Because those paths are local to that worker, keep the nodes that consume them in the same affinity group.

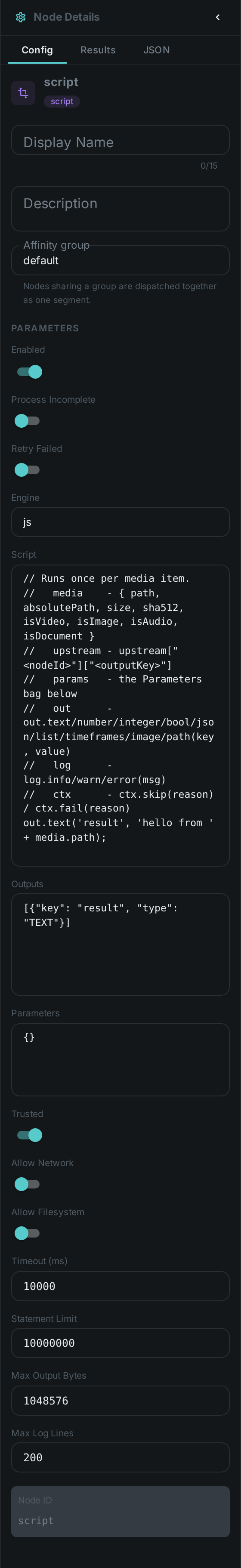

Configuration

Option Meaning

Engine

The script language. js (JavaScript) is currently the only one

Script

The script body, run once per media item

Outputs

The declared outputs — see Declaring outputs

Parameters

Constants handed to the script as params

Required Inputs

['nodeId:outputKey', …​] that must all be present, or the item is skipped rather than failed

Trusted

Whether the script runs with the worker’s full privileges (default) — see Safety and performance

Allow Network / Allow Filesystem

Extra capabilities, off by default

Timeout (ms)

How long one item may take before the script is stopped (default 10 s)

Statement Limit

A second guard against a script that loops forever

Max Output Bytes

Cap on the size of a single item’s results (default 1 MB)

Max Log Lines

Cap on log.* calls per item (default 200)

Required Inputs is what makes a script safe to hang off an optional branch: if an OCR node only runs for images, a script downstream of it skips videos quietly instead of reporting a failure for every one.

Safety and performance

Anyone who can edit a pipeline can run code on a worker. A script node is not a sandboxed plugin by default — treat permission to edit pipelines as equivalent to permission to run code, and grant it accordingly.

Three controls are available:

  • Trusted off. Turning off Trusted denies the script access to the host system: no Java classes, no files, no network, no threads. Use it for scripts that only need to reshape data.

  • Limits. The timeout and statement limit always apply, in both modes. A script that loops forever is stopped and the item recorded as failed; it cannot occupy a worker indefinitely.

  • Turning the node off entirely. Adding script to a worker’s node blacklist means that worker will refuse script work. If no worker accepts it, pipelines containing a script node are rejected when you try to run them, with a clear message — see Cortex Configuration.

On performance: scripts are interpreted, which is ample for shaping data and wrong for heavy per-pixel or per-frame computation. If you find yourself writing a tight loop over image data, that is the signal to build a proper node instead.

Use cases

  • Derive a timeline — turn a transcript, a caption set or a detection list into chapter marks.

  • Classify on a threshold — convert a quality metric or a sentiment score into a simple label.

  • Reshape model output — pull structured fields out of a language model’s free-text answer.

  • Bridge two nodes — rename, filter or combine upstream outputs so the next node gets what it expects.

  • Prototype — try out a processing idea in a live pipeline before committing to building a node for it.
