Face Detection

Finds the faces in your media and sorts them into the people it believes it saw.

The face detection node finds faces in images and video frames, computes a face embedding (a vector) for each one, and groups those embeddings into the distinct people it believes it saw. Each group is proposed for review; a person on your team confirms who it is. Video is processed by scanning frames at a configurable rate.

Grouping happens within a single asset. One video’s faces are sorted into the people in that video — it does not yet recognise the same person across two different files. See Grouping faces into people.

Kind

facedetect

Applies to

Image, Video

Input ports

image or video — exactly one of the two is wired

Output ports

detections (many — one element per detected face, the boxes that feed Scene Layout, Dominant Colour and Face Description), face_count (Integer — distinct people, not boxes), flag (String). Embedding vectors and face groups are not connectable ports: they are written straight to Loom, so face search and the review screen read them from there rather than through the graph

Requirements

InspireFace native runtime and its model pack. CPU works; a GPU-enabled pack accelerates video/large batches. Model files require local storage and memory.

Persists to

Detections, embeddings, face groups and one cropped face image per detection — all upserted, so re-running replaces rather than duplicates

Configuration

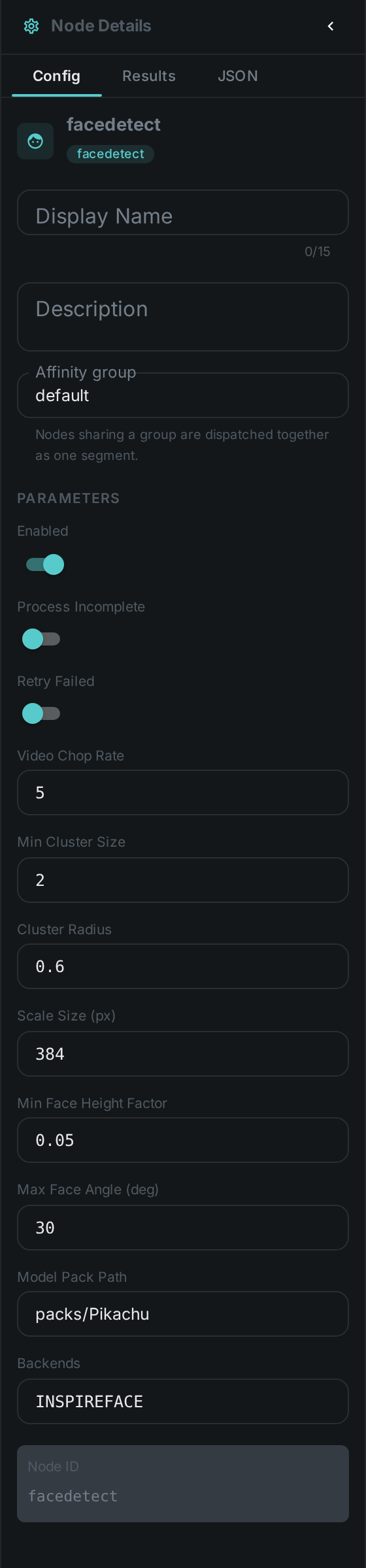

The Face Detection settings panel: Video Chop Rate

Figure 1. The node’s settings in the pipeline editor

Set these in the panel above, or in the node’s options block in a pipeline definition:

Option Meaning

Option	Meaning
`inspirefacePackPath`	Path to the InspireFace model pack
`capabilities`	Which InspireFace capabilities to enable (detection, recognition, …)
`videoChopRate`	How often to sample frames from a video. Lower samples more densely and costs more
`videoScaleSize`	Longest edge a frame is shrunk to before detection. `0` means full resolution, which is the default and finds the most small faces
`minFaceHeightFactor`	Minimum face size (as a fraction of frame height) to keep
`maxFaceAngle`	Maximum head rotation, in degrees, accepted for a face. A face turned further than this is discarded however confident the detector is, because a face in profile produces an embedding that cannot be matched to anything. Two people talking to each other rather than to the camera routinely sit past the default of 30°, and the node then reports nothing at full detection confidence — raise it for conversational or side-on footage
`embeddingsEnabled`	Whether to compute a recognition vector per face. Switch it off for a run that only needs boxes; without it faces can be drawn but never grouped
`embeddingModel`	The name recorded against every vector. Change it whenever the model pack changes — see Changing the model pack
`faceClusterMinimum`	How many faces have to agree before they are treated as one person. The default of `2` counts the face itself, so it means "needs at least one lookalike". A face that matches nobody is still reported as its own person
`faceClusterEPS`	How similar two faces must be to count as the same person — a distance, so smaller is stricter. The default of `0.6` is a starting point, not a calibrated value; see Tuning the grouping

inspirefacePackPath

Path to the InspireFace model pack

capabilities

Which InspireFace capabilities to enable (detection, recognition, …)

videoChopRate

How often to sample frames from a video. Lower samples more densely and costs more

videoScaleSize

Longest edge a frame is shrunk to before detection. 0 means full resolution, which is the default and finds the most small faces

minFaceHeightFactor

Minimum face size (as a fraction of frame height) to keep

maxFaceAngle

Maximum head rotation, in degrees, accepted for a face. A face turned further than this is discarded however confident the detector is, because a face in profile produces an embedding that cannot be matched to anything. Two people talking to each other rather than to the camera routinely sit past the default of 30°, and the node then reports nothing at full detection confidence — raise it for conversational or side-on footage

embeddingsEnabled

Whether to compute a recognition vector per face. Switch it off for a run that only needs boxes; without it faces can be drawn but never grouped

embeddingModel

The name recorded against every vector. Change it whenever the model pack changes — see Changing the model pack

faceClusterMinimum

How many faces have to agree before they are treated as one person. The default of 2 counts the face itself, so it means "needs at least one lookalike". A face that matches nobody is still reported as its own person

faceClusterEPS

How similar two faces must be to count as the same person — a distance, so smaller is stricter. The default of 0.6 is a starting point, not a calibrated value; see Tuning the grouping

Detection over time

On a video the node does not look at every frame, and it does not follow anyone: it samples frames at videoChopRate, detects independently in each one, and keeps the sharpest faces it found across the whole scan. So its output is a handful of detections at scattered moments rather than a box per frame.

That is why the detections port and face_count report different numbers, and should: detections is every box the scan kept, while face_count is how many distinct people those boxes turned out to be. Ten sampled faces of three people is ten detections and a face count of three.

Below is a real run of this node over a video, with its boxes painted in as the clip plays.

A box fades rather than disappearing because between two sampled frames there is no new answer — what you are seeing dissolve is the most recent report, going stale. The strip underneath holds the ten most recent detections with the crop the node cut for each; selecting one jumps to its frame.

The same output is what Debug Mode shows for this node, one frame at a time.

Seeing it run

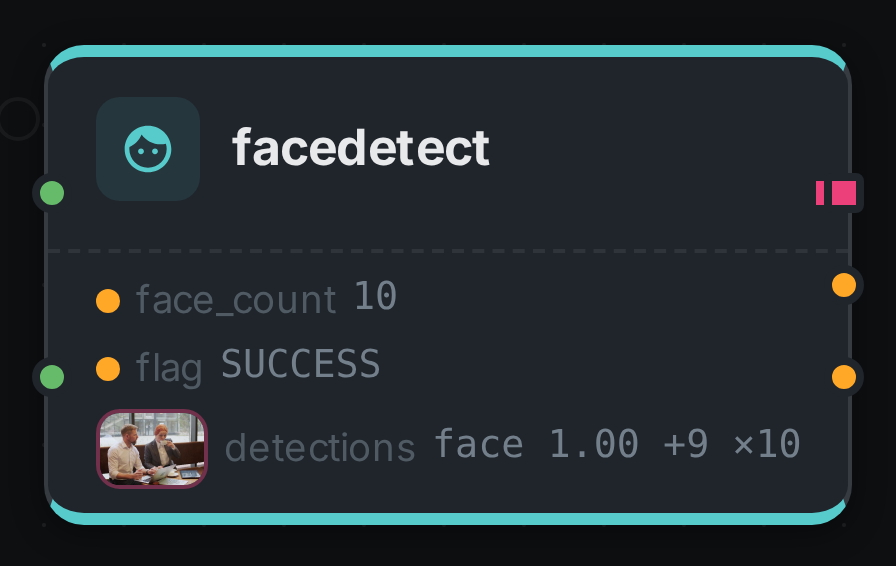

Turn on Debug Mode and every node keeps what it produced, on the card itself. Below is a real run of this node over pexels-jack-sparrow-5977265.mp4.

The strip on the card lists what each output port carried — face_count, flag, detections.

Selecting one of them opens it full size.

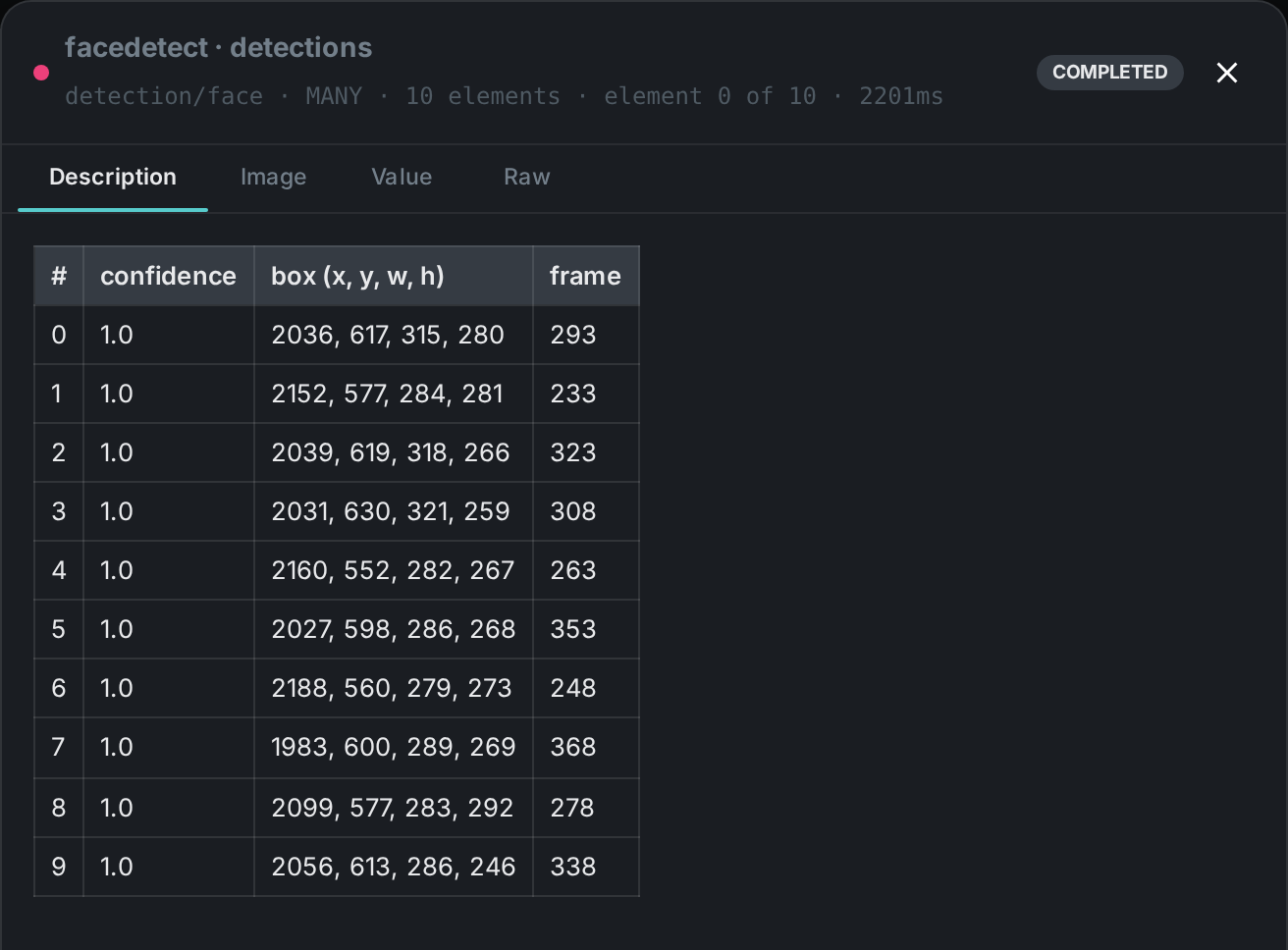

One output of the facedetect node opened full size

Grouping faces into people

Once every face has an embedding, the node compares them to each other and sorts them into groups — one group per person it believes it saw. Each group is saved as pending review: the software has made a proposal, and nobody has agreed to it yet.

Two properties of this are worth knowing before you rely on it.

It groups within one asset, not across your library. Confirming a group means "this person appears in this video". The same person in a second video produces a second, separate group that knows nothing about the first. Recognising somebody across the whole library is a different and larger job, and this node does not do it yet.

A face that matches nobody is still a person. A portrait contains exactly one face, which by definition has no lookalike. Rather than discard it, the node reports it as a group of one and marks it as uncorroborated — so a photograph of a person reports one person, not none.

Reviewing a proposal

Groups appear in the face review screen with the actual cropped faces they contain, so you can see at a glance whether the software got it right. You can then:

Confirm it, either onto somebody already in your people list or by creating a new person; or
Reject it, if it is not a person worth keeping — a poster on a wall, a reflection, a mistake.

A rejected group is kept as a record of the decision rather than deleted, so the same false grouping does not come back and ask again.

Crucially, re-running the node never undoes your decision. It rewrites the geometry of its own proposals — new boxes, new vectors — and leaves the verdicts alone. A group you confirmed last month is still confirmed, still attached to the same person, after the asset is processed again.

Every decision is also signed and dated: the group records which member of your team confirmed or rejected it, and when. That record is kept apart from the processing history the node writes, so it survives every later run — six months on you can still answer "who said this is Anna, and when?". Naming a face is a decision about a real person, and it is not one that should be traceable only to "the pipeline". A group nobody has looked at carries no reviewer at all, so "unreviewed" and "reviewed by the software" can never be confused.

Where the face pictures come from

Every cropped face you see in the review screen was cut by the node at detection time and stored in your own deployment. Face images and embeddings are biometric data: they are never fetched from, or sent to, an outside service.

Tuning the grouping

Two settings control how readily two faces are treated as the same person.

faceClusterEPS is a distance, so smaller is stricter. Lower it and you get more groups, each purer — the same person may be split across several. Raise it and groups merge, eventually pulling two different people together. Merging two people is usually the more expensive mistake to correct, so err low and let a reviewer merge.

faceClusterMinimum is how much corroboration it takes to form a group. It counts the face itself, so the default of 2 means "at least one lookalike". Raising it suppresses groups built from a single lucky frame.

Both are set on the node itself in the pipeline editor — select the face-detection node and edit Cluster Radius and Min Cluster Size in the settings panel. They belong to that node, so a pipeline can run two face-detection nodes at different strictness, and changing one leaves every other pipeline alone. The editor holds Cluster Radius to its valid range of 0 to 2.

Warning

The default of 0.6 is a reasonable starting point, not a value validated against your footage. The model pack’s own documentation suggests a stricter threshold than this default implies. If grouping is visibly wrong on your material, this is the first setting to change — and worth recording what you calibrated it against.

Changing the model pack

Face vectors from two different model packs are not comparable — they are coordinates in different spaces. Change inspirefacePackPath and every vector computed before the change becomes meaningless next to every vector computed after it.

The node guards against this by recording the pack in the model name against every vector it writes, so old and new populations stay separate rather than being silently mixed. Change embeddingModel whenever you change the pack, re-run face detection over the affected assets, and expect the groups to be re-proposed.

Use Cases

Who is in this video — get a per-asset list of the distinct people present, then confirm the ones you recognise onto named people.
Building a people directory — confirming a group either attaches it to somebody you already have or creates them, so the directory grows out of real footage rather than being typed in.
Content moderation / review — flag assets that contain people, and see how many.
Face search & recognition — the stored embeddings are what a library-wide face search will be built on.
Feed Face Description by connecting the detections port — it runs once per element of the sequence.
