Video Generation

The video-generation node generates a short video clip with a diffusion model. Like the image-generation node — and unlike the analysis nodes, which describe a property of the media itself — videogen produces fresh media: a small MP4 clip, either from a text prompt (GENERATE) or by animating the asset’s own still image as the opening frame (ANIMATE), and attaches it to the asset. The clip carries a synchronised audio track.

The diffusion model runs behind a small HTTP sidecar, so the node stays a pure client and needs no model runtime of its own. The shipped sidecar serves LTX-2, which fits a single 24 GB GPU.

Kind

videogen

Applies to

Image assets

Input ports

A generation prompt from the node configuration; in ANIMATE mode also media, the asset’s own image

Output ports

video (the generated MP4, ready for S3 Sink), flag (String)

Requirements

A running video sidecar (/generate, /animate). A GPU with at least 24 GB is required.

Persists to

asset_node_result ledger only — the generated MP4 stays in the worker’s local videogen_bin cache (as with generated images)

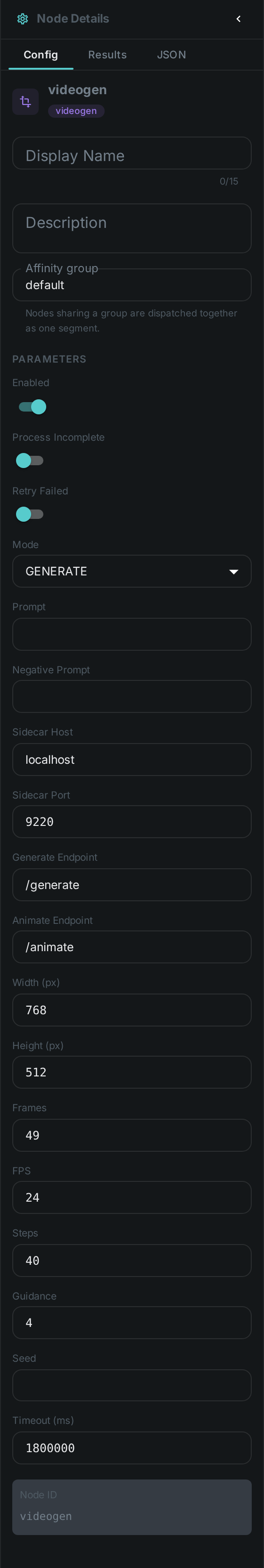

Configuration

VideoGenNodeOptions:

Option Meaning

mode

GENERATE (text-to-video) or ANIMATE (image-to-video) (default GENERATE)

prompt

The generation prompt (required)

negativePrompt

What to steer away from (optional; the sidecar applies its own default when empty)

host / port

Address of the video sidecar (default localhost:9220)

width / height

Output size (default 768 × 512; snapped to a multiple of 32 by the sidecar)

numFrames

Number of frames (default 49; snapped to k*8+1 by the sidecar)

fps

Frame rate of the produced clip (default 24)

steps

Number of inference steps (default 40)

guidance

Prompt guidance scale (default 4.0)

seed

Optional RNG seed for reproducible output

Running the sidecar

The sidecar is a small FastAPI service:

cd sidecars/ltx2-sidecar
./setup.sh                       # venv; installs torch (cu128) then requirements.txt
./run.sh                         # serves on :9220 (first call loads the model)
# smoke test
curl -s -X POST localhost:9220/generate \
  -H 'content-type: application/json' \
  -d '{"prompt":"a dark, elegant cinemagraph of glowing teal threads","num_frames":33}' -o out.mp4

The first request downloads and quantizes the model, which takes a while; everything after is warm. LTX-2 is a large system — it fits a single 24 GB card only because the sidecar quantizes it to 4-bit. Set steps and numFrames modestly for interactive latency and raise them once you have the GPU time budget.

Use Cases

  • Motion hero clips — turn a catalogue prompt into a short looping clip for a listing.

  • Animating a still — bring an existing asset’s image to life as the opening frame of a clip.

  • Previews & variations — produce derived motion visuals for review workflows.

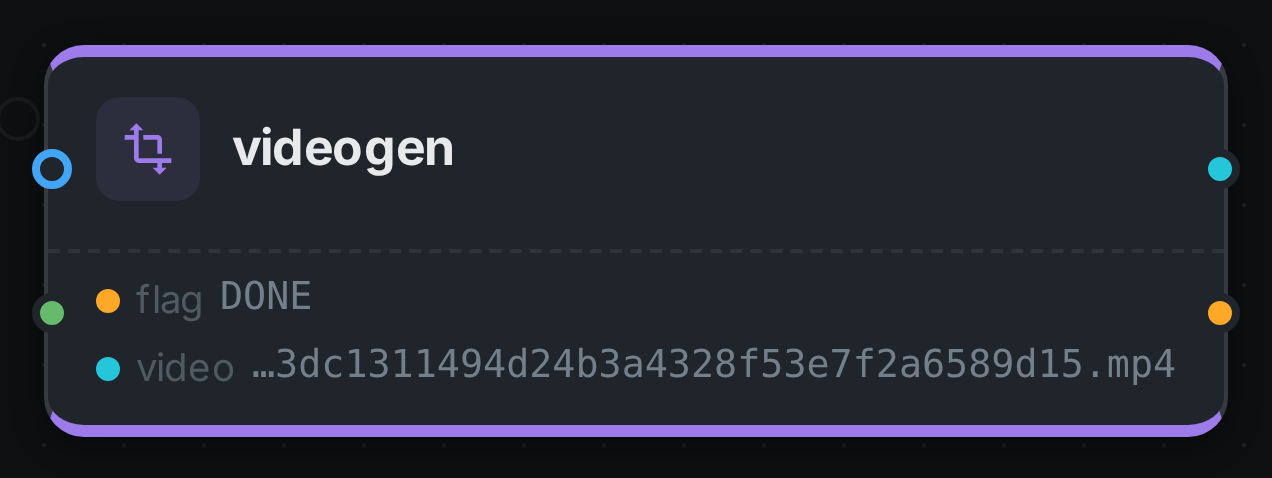

The generated MP4 is written to the worker’s local videogen_bin cache and a node-result ledger row records that the node ran for the asset. Wire the video port into an S3 Sink to keep the clip and register it as its own asset.
