Depth Map

The depth map node works out how far each part of a photo is from the camera, from the photo alone. No stereo pair, no depth sensor, no camera metadata — a single image goes in, and a greyscale map comes out in which bright means close and dark means far.

That map is what turns a flat list of detected things into a scene you can reason about. On its own it powers depth-aware cropping, background separation and subject isolation; combined with Scene Layout it is what lets MetaLoom say a person is standing in front of a car rather than merely overlapping it in the frame.

The model runs behind a small HTTP sidecar, so the node stays a pure client and your worker needs no machine-learning runtime of its own.

Kind

depthmap

Applies to

Images. Video is not supported yet

Inputs

The image asset itself — no upstream node required

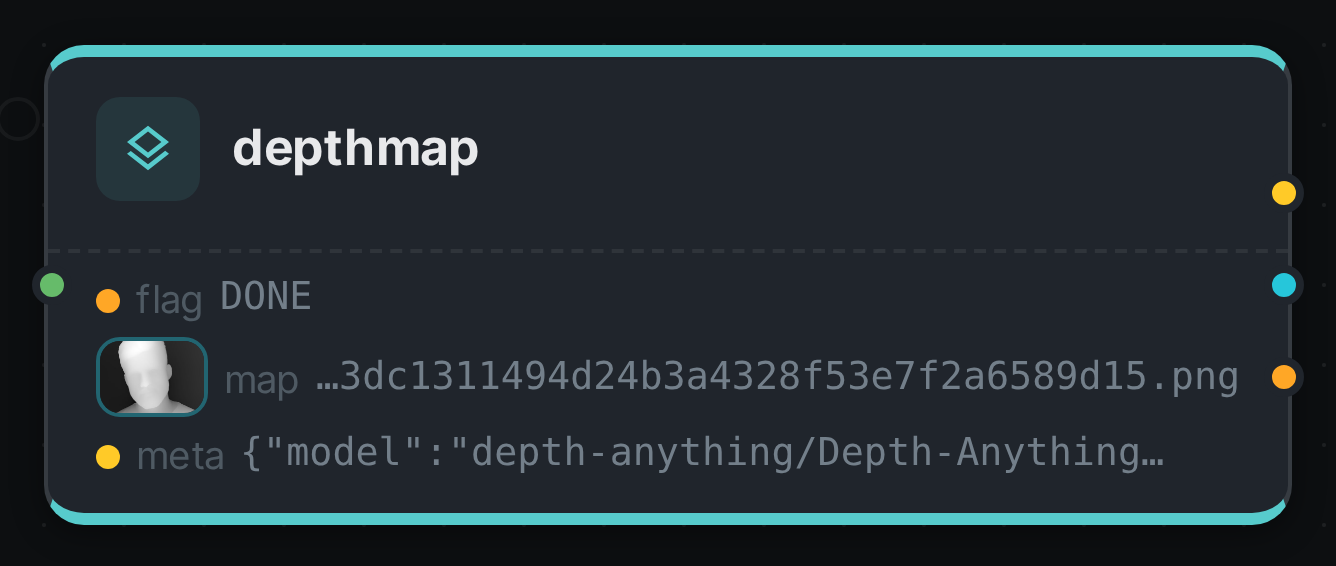

Output keys

depthmap_flag (String), depthmap_path (String), depthmap_meta (JSON String)

Requirements

A running depth sidecar (/v1/depth). CPU works for the default model; a GPU is much faster and is recommended for metric mode

Persists to

The generated map stays on the worker under depthmap_bin; a processing record is stored against the asset

What it produces

A 16-bit greyscale PNG and a small JSON description of it:

{
  "model": "depth-anything/Depth-Anything-V2-Small-hf",
  "convention": "NEARNESS",
  "source": "RELATIVE",
  "width": 1024, "height": 683,
  "imageWidth": 4000, "imageHeight": 2667,
  "stats": { "p05": 0.11, "p50": 0.38, "p95": 0.82 },
  "path": "/var/lib/cortex/depthmap_bin/ab12/<hash>.png"
}

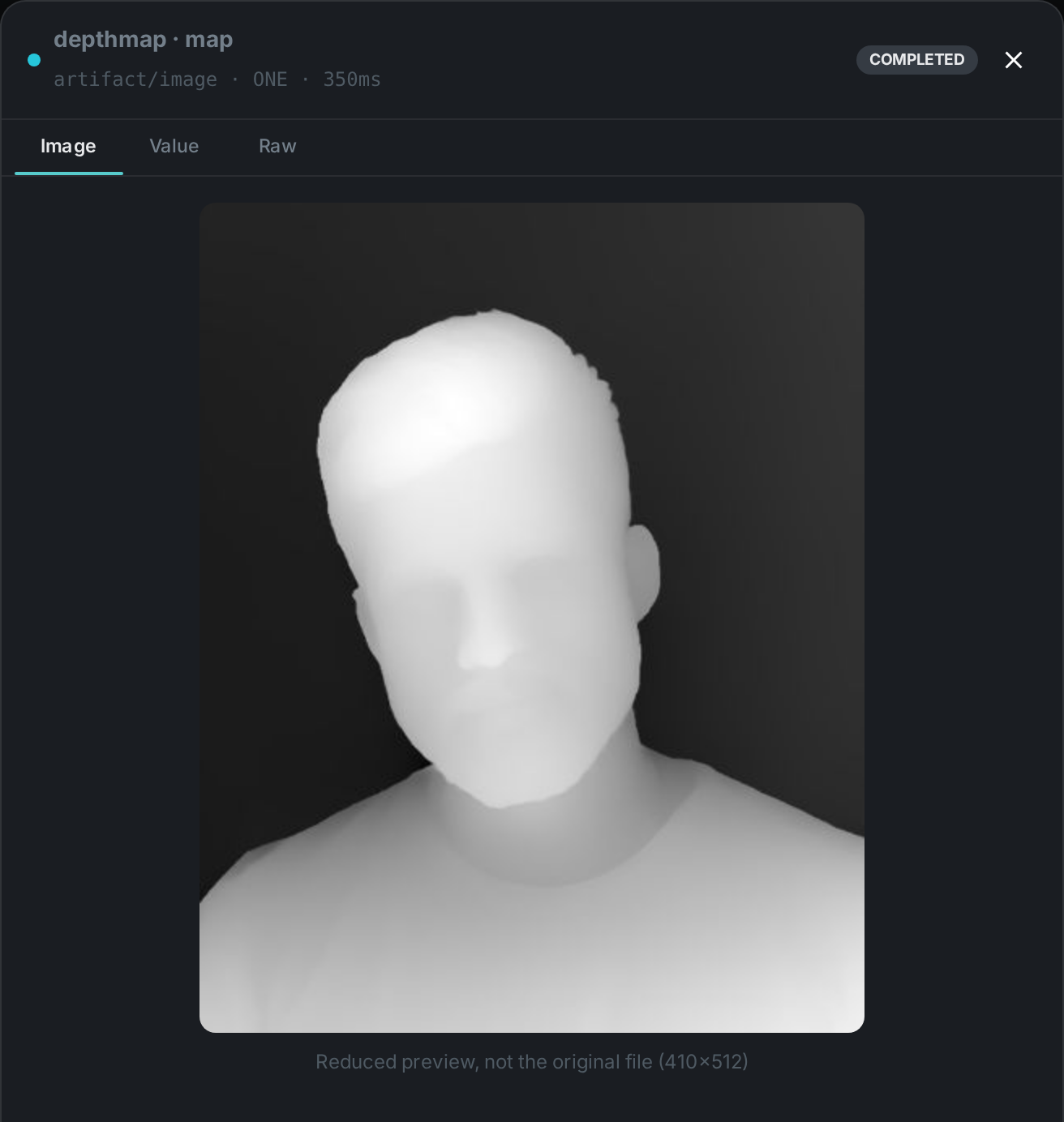

Reading the map

The one rule worth remembering: brighter is closer. The map stores nearness, not distance — white is right in front of the lens, black is the far background. Every model is normalised to that same convention before it reaches you, so a map is readable the same way regardless of which model produced it.

Two further details matter if you process the map yourself:

  • width and height describe the map, which is a scaled-down version of your image. imageWidth and imageHeight give the original, so you can map coordinates between the two.

  • Relative mode gives you reliable ordering — what is in front of what — but not distances. If you need actual metres, switch to metric mode and read metric.min_m / metric.max_m.

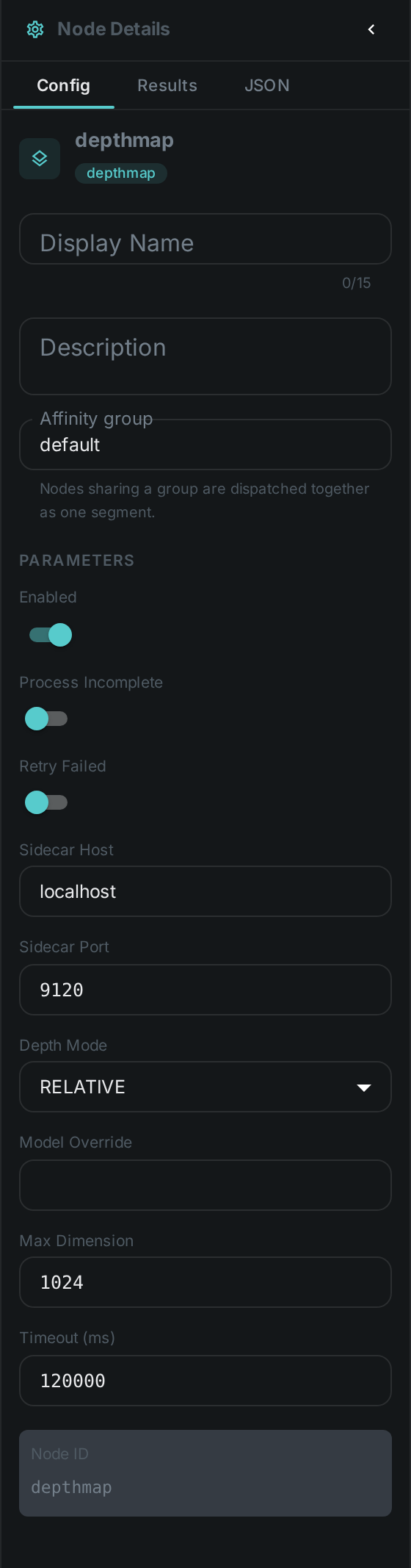

Configuration

DepthmapNodeOptions:

Option Meaning

depthHost / depthPort

Where the depth sidecar is listening. Defaults to localhost:9120

mode

RELATIVE (default) orders things front-to-back; METRIC also reports a range in metres

model

Use a specific model instead of the sidecar’s default for the selected mode

maxDim

Longest side sent for analysis, default 1024. Lower is faster and coarser; this also sets the size of the produced map

timeoutMs

How long to wait for the sidecar, default 120000

Requirements and models

The default model is Depth Anything V2 Small, published under Apache 2.0 and usable commercially. It is small enough to run on a CPU, though a GPU will process a large library far faster. Metric mode uses ZoeDepth (MIT), which is heavier and really does want a GPU.

Note

The larger Depth Anything V2 models are published under a non-commercial licence and are deliberately not the default. If you want higher quality with commercial terms intact, use a DPT / MiDaS model instead. See Model licences.

Use Cases

  • Subject isolation — find the foreground automatically for cut-outs, blurred backgrounds or depth-aware crops that keep the subject.

  • Better automatic cropping — a crop that respects depth keeps the person and drops the wall, instead of cutting by rule of thirds and hoping.

  • Scene understanding — feed Scene Layout so captions and search can talk about what is in front of what.

  • Quality triage — flat depth across an entire frame is a good signal for a photograph of a screen, a document scan, or a flat-lay, which you may want routed differently.

Deployment note

The generated map is stored on the worker that produced it. If you chain this node with Scene Layout, put both in the same affinity group in your pipeline so they run on the same machine — otherwise the second node cannot find the map.
