Nodes

Content Guard

The guard node screens your content against a harm taxonomy and gives you a yes/no answer with a confidence score behind it. Connect text to it — a Whisper transcript, Tika document content, an OCR result, a caption — or point it at image assets, and every item comes back labelled safe or unsafe, with the harm categories that fired and how sure the model was.

The safe output is a branch. Connect a node behind it and that node runs only for the items that came back clean, so a publishing step, an S3 upload or a tagging pass can be gated on the verdict without a filter node in between.

Three families of open guardrail model are supported behind this one node — Meta’s Llama Guard, Google’s ShieldGemma and IBM’s Granite Guardian. They disagree about almost everything: how many questions they answer per item, what they call each kind of harm, even how many categories exist. The node normalises all of it, so swapping the model does not mean rewiring the pipeline.

Kind

guard

Applies to

Any asset with text connected; image assets when the configured model can read pictures

Input ports

text — accepts any text type, so a transcript, a document body, an OCR result or a caption can all be wired into it. media — the picture itself, for an image asset

Output ports

safe (Branch), label (String), score (Number), categories (String, one per flagged category), result (the structure below)

Requirements

An OpenAI-compatible endpoint serving one of the supported guardrail models

Persists to

asset_json_comp — one verdict per asset

What it produces

{
  "safe": false,
  "score": 0.6466,
  "threshold": 0.5,
  "family": "LLAMA_GUARD_3",
  "model": "meta-llama/Llama-Guard-3-8B",
  "subject": "text",
  "categories": [
    {
      "canonical": "VIOLENT_CRIME",
      "native": "S1",
      "label": "Violent Crimes",
      "score": 0.6466
    }
  ],
  "raw": "unsafe\nS1",
  "probes": 1,
  "scoreExact": true,
  "textChars": 183
}

That is a real verdict, from the run the screenshots on this page were taken of: a delivery complaint that ends in a threat, screened by Llama Guard 3. score is the probability that the item is unsafe, and it means the same thing whichever model produced it. safe is simply score < threshold — note how close 0.65 is to the default 0.5, which is why the threshold is worth tuning against your own content rather than left at the default.

Each flagged category is reported twice on purpose. canonical is MetaLoom’s own name for that kind of harm and is the same word whichever model you run; native is the model’s own code, kept so you can trace a verdict back to the model card without guesswork.

One node, three families of model

Pick the family in the node’s settings. It selects the prompt format, the list of harm categories, and — the part you will feel — how much work one verdict costs.

Family Setting Categories Cost per item

Llama Guard 3 (Meta)

LLAMA_GUARD_3

14 hazards, from violent crime to election interference

One model call, whatever you select

Llama Guard 4 (Meta)

LLAMA_GUARD_4

The same 14 minus code-interpreter abuse

One model call. Reads pictures as well as text

ShieldGemma (Google)

SHIELDGEMMA

4 policies: dangerous content, harassment, hate speech, sexually explicit

One call per category

ShieldGemma 2 (Google)

SHIELDGEMMA_2

3 image policies: sexually explicit, violence & gore, dangerous content

One call per category. Pictures only

Granite Guardian (IBM)

GRANITE_GUARDIAN

9 risks, including jailbreak attempts and unethical behaviour that the other two have no word for

One call per category

The difference in cost is real and worth planning around. Llama Guard asks the model a single question covering its whole taxonomy, so screening a million assets costs a million calls. ShieldGemma and Granite Guardian ask one yes/no question per category, so leaving all nine Granite risks switched on costs nine million. What you buy for that is a genuinely independent score per category, rather than one number covering everything the model flagged.

Narrowing the categories setting is therefore a throughput decision, not just a policy one. If you only care about sexual content and violence, selecting those two makes the node four times faster on ShieldGemma. It makes no difference at all on Llama Guard.

The categories all three models agree on

Whichever family you run, a flagged item is reported in one shared vocabulary. That is what lets you connect categories to a tag node, or route on a specific kind of harm, and keep the pipeline working after you change models.

Category Reached from

VIOLENT_CRIME

Llama Guard S1, ShieldGemma 2 violence_gore, Granite violence

NON_VIOLENT_CRIME, SEX_CRIME, CHILD_EXPLOITATION

Llama Guard S2, S3, S4

DEFAMATION, SPECIALIZED_ADVICE, PRIVACY, INTELLECTUAL_PROPERTY

Llama Guard S5–S8

INDISCRIMINATE_WEAPONS

Llama Guard S9

HATE

Llama Guard S10, ShieldGemma hate_speech, Granite social_bias

SELF_HARM

Llama Guard S11

SEXUAL_CONTENT

Llama Guard S12, ShieldGemma sexually_explicit, Granite sexual_content

ELECTIONS, CODE_INTERPRETER_ABUSE

Llama Guard S13, S14

HARASSMENT, DANGEROUS_CONTENT

ShieldGemma harassment, dangerous_content

PROFANITY, UNETHICAL_BEHAVIOUR, JAILBREAK

Granite Guardian profanity, unethical_behavior, jailbreak

OTHER

Granite Guardian’s general harm criterion, and any code a newer model revision introduces that this release does not recognise yet

Screening pictures

Two of the five models read images: Llama Guard 4 and ShieldGemma 2. Point the node at either one and image assets are classified from their pixels — no captioning step in between.

Important

Image screening needs vLLM, not llama.cpp. llama.cpp cannot serve either multimodal guard model today: no vision projector has been published for Llama Guard 4, and ShieldGemma 2 has no llama.cpp conversion at all. Text screening works on llama.cpp with all five.

If an image asset reaches a text-only model with nothing connected to text, the node fails that item rather than passing it. A content guard that quietly waves through everything it cannot read is worse than one that stops and tells you.

You can also connect text and run on image assets at the same time — a caption plus the picture it describes, say. Both are screened and the node reports the worse of the two, which is the reading you want from a gate.

If you would rather screen pictures with a text-only model, put captioning or VLM in front of the guard and connect its output to text. You are then screening the description rather than the image, which catches less — but it runs anywhere.

Gating a branch on the verdict

safe is a branch, so anything connected behind it runs only for items that passed:

{
  "nodes": [
    { "id": "source",  "type": "filesystem-source", "name": "Incoming",
      "options": { "path": "/media/incoming" } },
    { "id": "extract", "type": "tika",  "name": "Extract text" },
    { "id": "guard",   "type": "guard", "name": "Screen content",
      "options": { "family": "LLAMA_GUARD_3", "threshold": 0.6 } },
    { "id": "publish", "type": "s3-sink", "name": "Publish to the public bucket" }
  ],
  "edges": [
    { "id": "e1", "source": "source",  "sourcePort": "media",
      "target": "extract", "targetPort": "media" },
    { "id": "e2", "source": "extract", "sourcePort": "content",
      "target": "guard",   "targetPort": "text" },
    { "id": "e3", "source": "guard",   "sourcePort": "safe",
      "target": "publish", "targetPort": "media" }
  ]
}

A flagged asset simply does not reach publish. It is still fully processed and its verdict is still stored, so nothing is lost — you can find every flagged asset afterwards and review it:

curl -s -H "Authorization: Bearer $TOKEN" \
  "$LOOM/api/v1/assets/$ASSET/json-comps" \
  | jq '.data[] | select(.schemaType == "guard") | .data | {safe, score, categories}'

Connecting categories to a tag node instead of gating gives you the softer version: nothing is blocked, but every flagged asset is searchable by the kind of harm that was found.

Choosing a threshold

threshold is the score at which an item is flagged, and the default of 0.5 is a starting point rather than a recommendation. Lower it to catch more and review more; raise it to flag only what the model is confident about.

Run the node over a representative sample first and look at the score values it produces. A threshold picked from your own content is worth far more than one picked from a model card, because where the scores fall depends on what you are screening.

Note

Watch for "scoreExact": false in the stored verdict. All three families report their confidence as a probability, and the node reads it directly from the model. Some backends do not return that information at all — when that happens the node falls back to the model’s plain yes/no answer, scores it 1.0 or 0.0, and marks the verdict inexact. Everything still works, but threshold has nothing meaningful left to compare against, so tuning it stops having any effect. If you see this, check that your endpoint supports returning token probabilities.

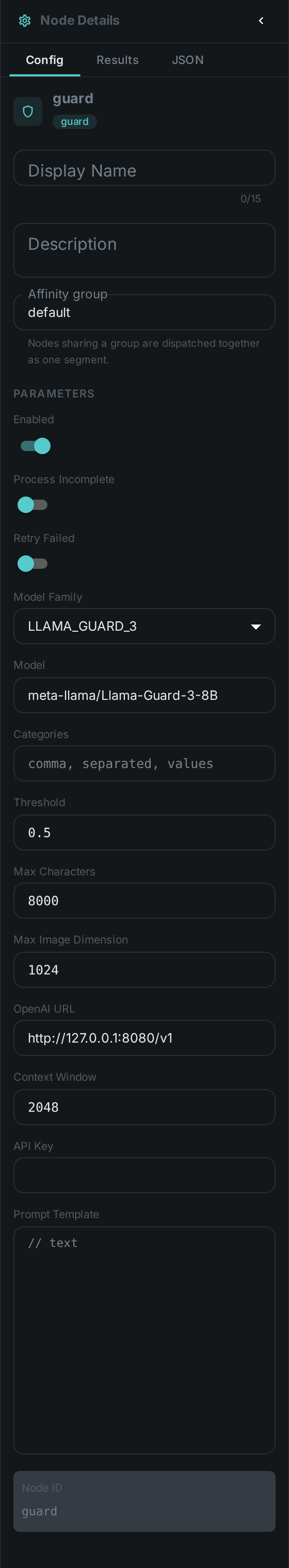

The Content Guard settings panel: Model Family
Figure 1. The node’s settings in the pipeline editor
Option Meaning

family

Which guardrail model you are running (default LLAMA_GUARD_3). Selects the prompt format, the categories and the cost per item

model

The model id to select on the endpoint (default meta-llama/Llama-Guard-3-8B). Recorded with every verdict

categories

The harm categories to check, using the selected family’s own codes. Leave empty to check all of them

threshold

The score at or above which an item is flagged (default 0.5)

maxChars

Upper bound on the text sent to the model; longer input is truncated (default 8000)

maxImageDim

Longest side an image is scaled down to before it is sent (default 1024)

openaiUrl

Base URL of the OpenAI-compatible backend (default http://127.0.0.1:8080/v1)

contextWindow

Tokens the model is told it may use for one call (default 2048)

apiKey

Bearer token for the endpoint. Leave empty for a local backend

promptTemplate

Replaces the family’s built-in prompt. Leave empty unless you have a reason not to — see below

There is no option naming where the text comes from: the text port accepts any text type, so you draw a connection instead.

categories is a comma-separated list and must use the codes of the family you selected — S1, S12 for Llama Guard, hate_speech, sexually_explicit for ShieldGemma, violence, jailbreak for Granite Guardian. Pick from the wrong family and the node tells you so, and names the ones it does accept.

Warning

Leave promptTemplate alone unless you have measured the alternative. These are classifiers, not chat models: each one was tuned against one specific wording, and rewriting it changes the answers in ways that are not obvious from reading the output. The option exists so you can adapt to a new model revision before MetaLoom ships support for it — not as a policy knob. To change what is screened, use categories.

Seeing it run

Turn on Debug Mode and every node keeps what it produced, on the card itself. Below is a real run of this node over the shared delivery-complaint transcript, escalated into a threat — screened by Llama Guard 3.

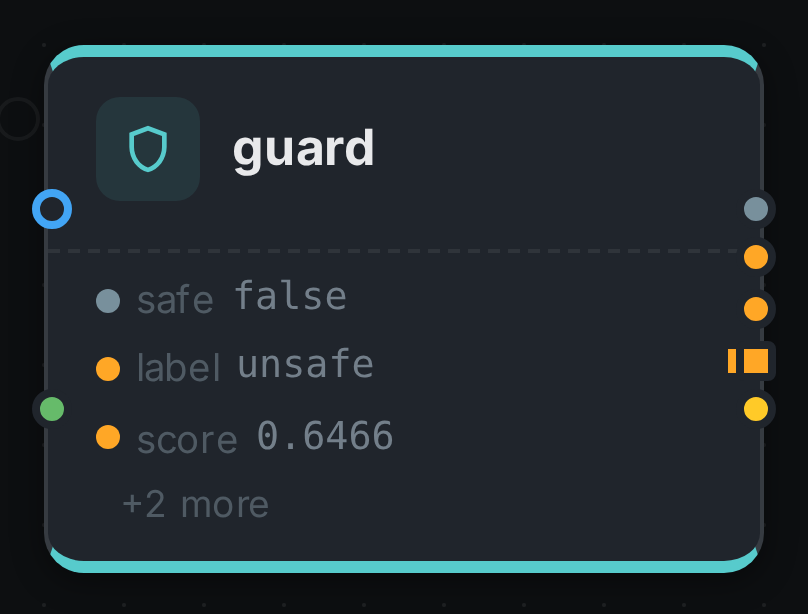

The guard node after a run: safe false

The strip on the card lists what each output port carried. Opening the result port shows the verdict as a table: the score, the threshold, and every category that fired with its own confidence.

Licensing

All five models are third-party weights you provide and operate — MetaLoom ships none of them. Llama Guard carries Meta’s Llama Community License, ShieldGemma the Gemma Terms of Use, and Granite Guardian is Apache-2.0. See Model Licenses before you deploy.

See also

  • Filter — route items several ways rather than gating one branch

  • Tag — make the flagged categories searchable instead of blocking the asset

  • Sentiment — the other node that scores upstream text

  • Model Licenses
