Browser

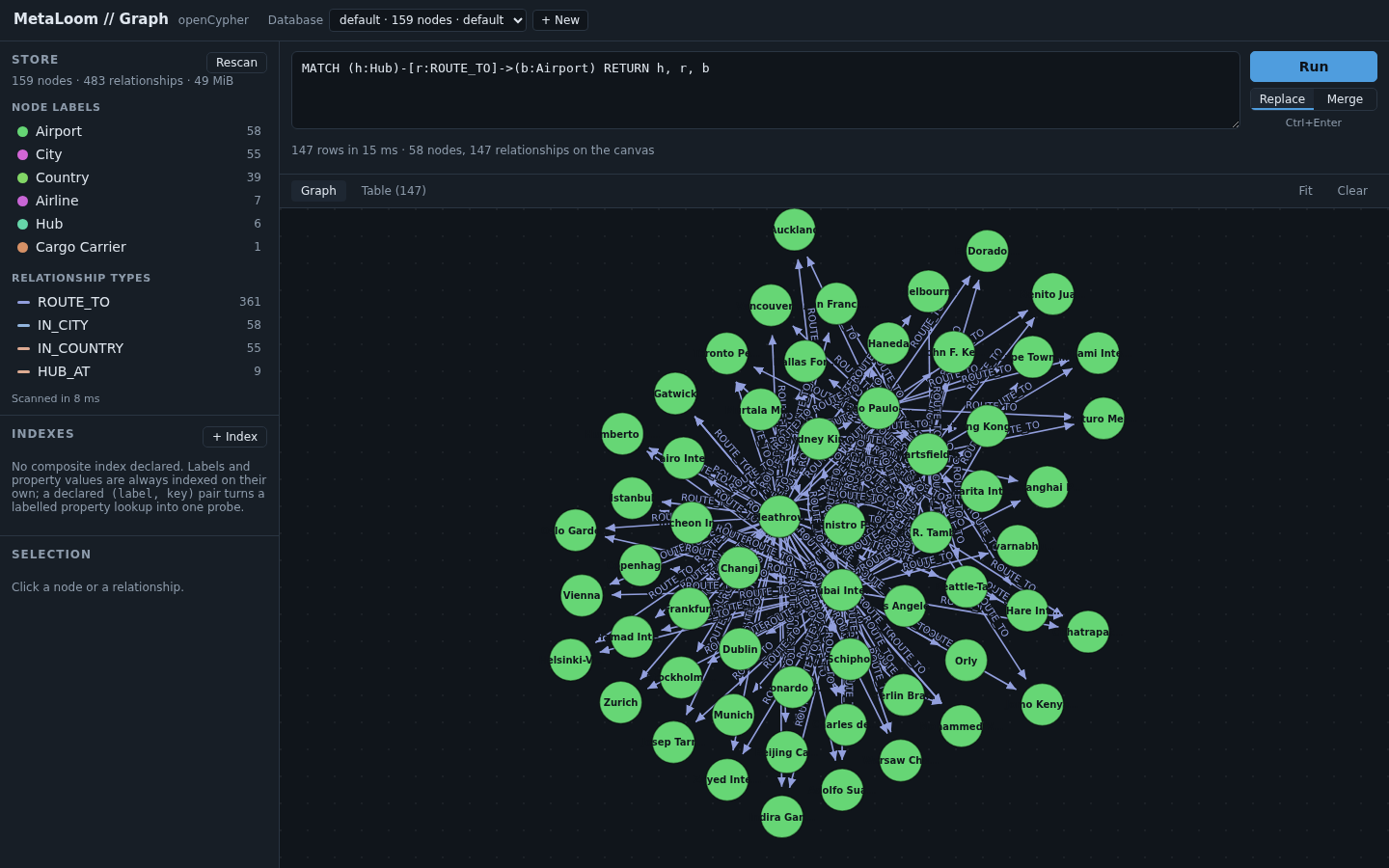

Type Cypher, press Ctrl+Enter. Results arrive as both a graph and a table from the same response, and the status line says how many rows came back, how long the server took, and how much of it reached the canvas.

Replace and Merge decide what a second query does to the canvas: replace it, or add to what is already drawn. Merge is what makes exploration work — run a query, click a node, run a query about that node, and keep the context.

A syntax error comes back as a message with a caret under the offending token, because the parser reports a position and the UI shows it rather than flattening it to "invalid query".

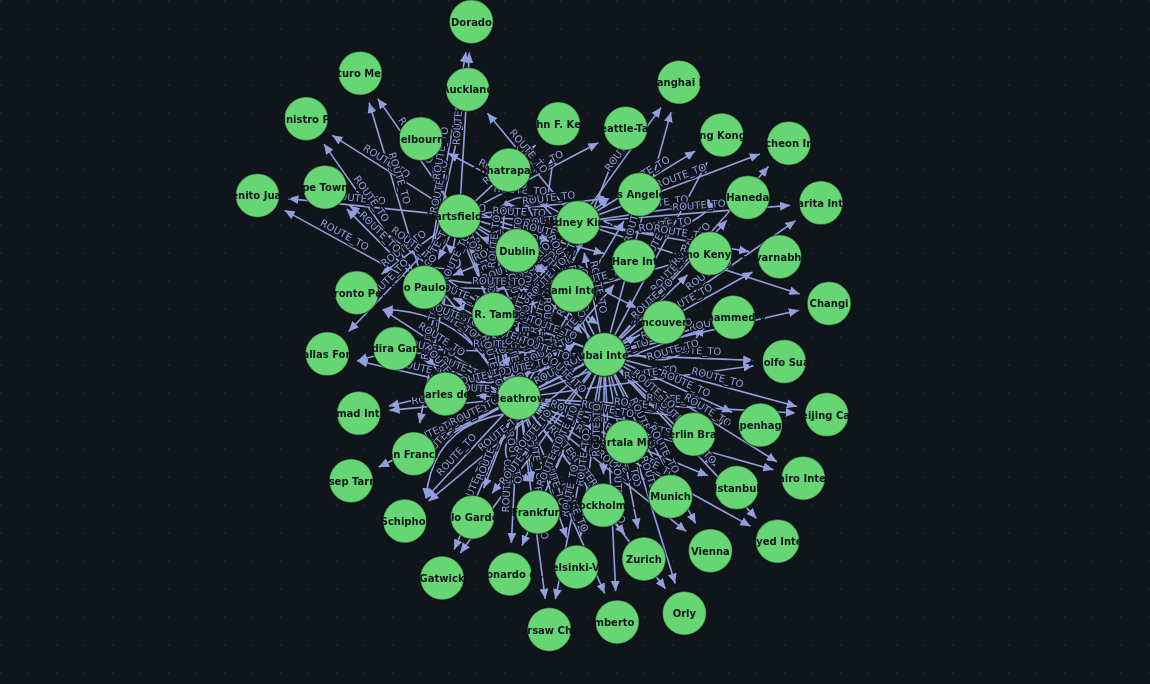

d3-force, with drag and zoom. React owns everything outside the <svg> and d3 owns everything inside it; they do not share state, because a simulation writing into React state would re-render the application on every tick.

Colour is assigned per label, deterministically, so the same label is the same colour across queries and across sessions.

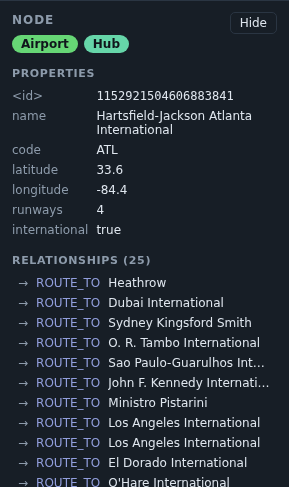

Click a node or a relationship to see everything it holds: its id, its labels, every property, and its relationships with their direction and their far end.

The relationship list is the fastest way to navigate a real graph — clicking through it is a traversal, and the result is the same one a query would give.

Labels, relationship types and property keys, each with a count, so you can write a query against what is actually there rather than what you remember being there.

This is a full scan — O(nodes + edges), and there is no cheaper way to get a truthful answer. Three things keep it from being a problem: it runs on a worker thread, the result is cached for a minute, and the response says how long it took so you can see what it cost. On a store large enough for the scan to hurt, the sidebar is the wrong tool and the cache is what keeps the UI usable.

Declare a composite index on a (label, property key) pair, optionally unique, and drop it again.

Declaring one scans the store, so the index is complete when it appears rather than filling in behind you. A unique one is refused outright if the existing data already breaks it, rather than being recorded as a constraint that is not true.

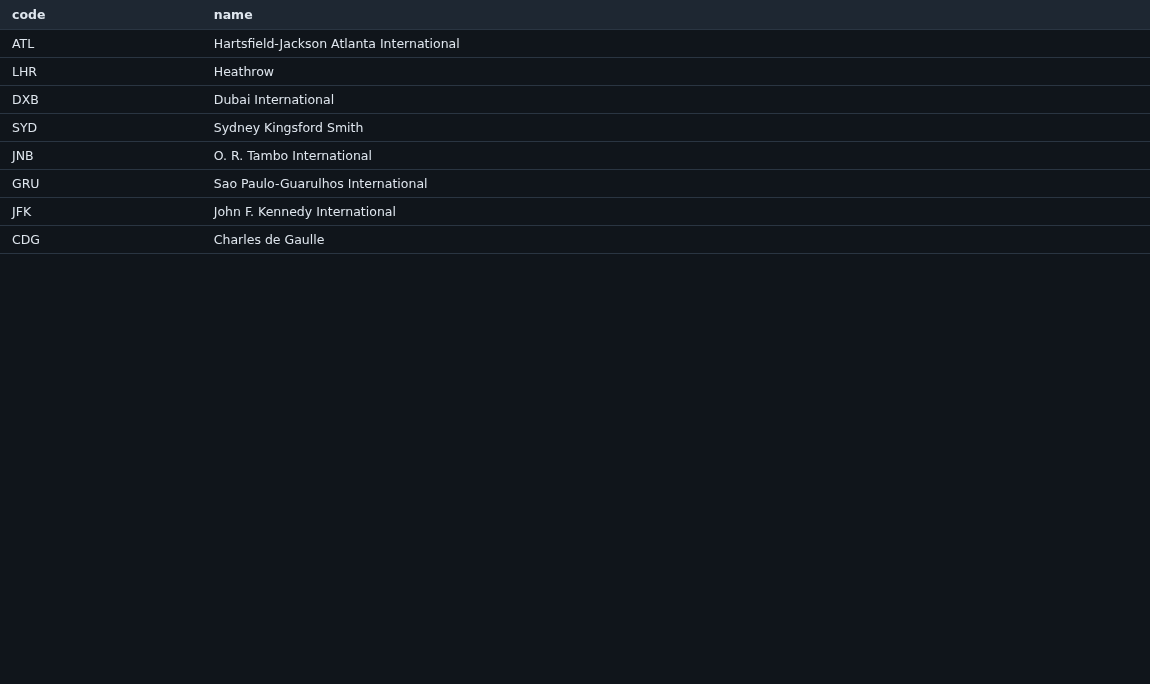

The same result as the graph, as rows — which is what you want when a query returns scalars rather than nodes.

There is no authentication on the port this UI is served from, and none in the UI. Anyone who can reach it can read every database under the root, and if the server was started with --allow-write, change them.
